Hydraulic Components

Product features and Applications
SA9F series low noise, high speed, compact structure, easy operation, a variety of control mode for maintenance.
Main application: the lawn trimming machine, automatic tipping machine, shrubs, cutting machine, mini concrete mixer, skid loader, rice harvester.
technical parameter
          Model   SA9F21040
          Replace (74318-DDA)
          Displacement 40.6 ml/r
          Rated Pressure 21MPa
          Max. Pressure 34.5MPa
          Rated Speed 1800r/min
          Max. Speed 3600r/min
          Max. Torque 115N.m
          Inlet Pressure 0.08~0.5 MPa
          Max. Oil Inlet Pressure 0.15 MPa

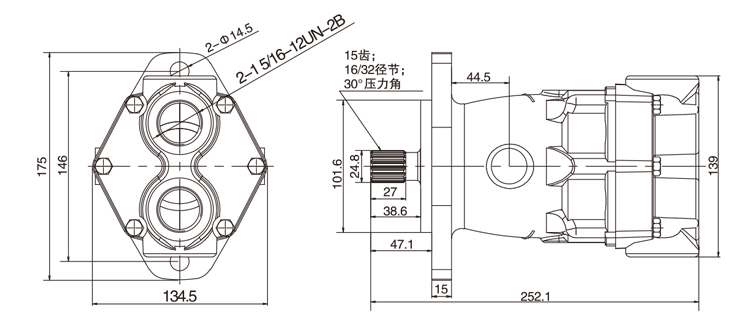

Installation size
