Contact the dealer to know more about the order information.
Hydraulic Components
Product features and Applications

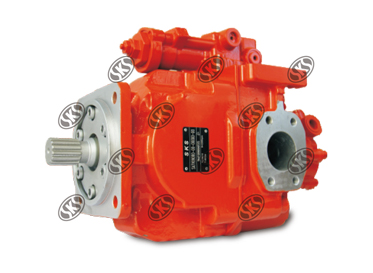

SA7V90R is swash plate axial piston pump.It has constant power control and load sensing control.Compact structure. It has pilot gear pump and applied in construction machinery, building machinery and mining machinery open-circuit hydraulic system, especially for 8-10 ton excavator.
technical parameter
| Model | SA7V090R |
| Replace | (PVC90R) |
| Displacement | 90 mL/r |
| Direction Of Rotation(View From Shaft End) | Right Rotation |
| Rated Speed | 2000 r/min |
| Max. Speed | 2300 r/min |
| Inlet Pressure | 0.05~0.2 Mpa |
| Rated Pressure | 28 MPa |
| Max. Pressure | 30 MPa |
| Recommended Oil | L-HM46（Summer） L-HM32（Winter） |
| Housing Pressure | ≤0.15 MPa |
| Displacement Of Gear Pump | 8 mL/r |
| Max. Pressure Of Gear Pump | 5 MPa |
| Woking Mode | Open Circuit System |
Installation size
